How do you choose and install underground cable markers?

This playbook gives facility managers, site crews, and EHS teams a clear on-site sequence for selecting the right underground cable markers, verifying line locations, installing markers to accepted practice, and documenting the work for future locates. It combines marker type recommendations, placement rules, locating compatibility, and inspection checkpoints you can use during a single mobilization.

Key Takeaways

• Always confirm utility locates and local specifications before installation.
• Choose the right marker type based on the utility, environment, and expected service life.
• Document installation details meticulously to reduce future risks and improve locate accuracy.
• Inspect markers regularly to ensure continued visibility and functionality.
• Consult local regulations and standards to ensure compliance and reliability.

Before you start: a short decision checklist

Complete these administrative and safety items before any marking work. Do not begin physical marking until these steps are confirmed.

• Request utility locates through your regional 811 service and obtain written locate tickets for each identified line.
• Coordinate with the utility owner or engineer to confirm which line is being marked and to learn any special requirements.
• Evaluate site hazards, set traffic controls, and assign a competent person to oversee excavation or near-surface work.
• Confirm locating method needs. For nonmetallic lines, plan for active EM tracing or tracer wire, because passive receivers cannot always detect plastic conduit without a conductive path. See FHWA guidance on active detection for plastic and PVC utilities for technical context FHWA cable-and-pipe locators guidance.
• Check local DOT, municipal, and owner specifications that apply to marker type, placement, and spacing before you order products or install markers.

Choose the right marker type for the job

Match marker style to the utility, the environment, expected service life, and detection needs. Common choices include concrete slab markers, near-surface plates, buried marker posts, detectable tape and tracer wire, and adhesive or chamber labels.

When to use each type

• Concrete slab markers are for permanent runs that need long service life and clear surface reference. Many DOT specifications call for concrete slabs with direction arrows and defined dimensions. For example, Indiana DOT specifies a 2 foot square by 4 inch thick slab with arrows die impressed or saw cut at a minimum depth of 3/8 inch, placed at changes in direction and at maximum intervals on straight runs Indiana DOT construction procedures.
• Near-surface plates work where visibility is required but heavy vehicle loads are not expected. They are faster and cheaper to install than concrete slabs.
• Buried marker posts give a vertical reference at grade and are useful at roadside or property boundary locations where frequent visual checks are likely.
• Detectable tape and tracer wire are essential for nonmetallic conduit or fiber lines when locating equipment must sense a conductive path. The FHWA explains why active transmitters or tracer continuity matter for plastic and PVC locates FHWA cable-and-pipe locators guidance.
• Adhesive labels and chamber markers are appropriate inside vaults, manholes, and pull boxes. They do not replace surface or near-surface markers on long runs.

For product options and formats that apply to buried utilities, VisionMarker documents marker types and specifications that span underground pipe and utility marking Underground Pipe Markers: Spot Lines Fast in.

Locate and verify the line before you mark

Follow this locating sequence. Treat each step as a verification stop point. Stop and resolve any discrepancy before continuing.

1. Confirm 811 tickets and on-site flags or paint applied by utilities.
2. If the line is metallic or has tracer wire, use a passive receiver to confirm continuity and route. If the line is nonmetallic, use an active transmitter to induce a detectable signal, or confirm installed tracer wire.
3. Measure and record offsets from fixed site references such as curbs, manholes, or permanent fixtures. Photograph the locate with a visible scale, and gather approximate GPS coordinates when practical.
4. Identify and mark both the assumed centerline and the safe working corridor for any excavation or near-surface work.

Placement and spacing: rules for runs and changes of direction

Use these placement rules during layout. Local specifications may differ, so confirm with the authority having jurisdiction before installation.

• Install markers at every change in direction and at points where the distribution circuit splits or branches. This helps future locates follow the line and find junctions reliably.
• On straight runs, follow any applicable DOT or owner maximum spacing. As an example, Indiana DOT specifies a maximum of 400 foot intervals on straight runs for concrete cable markers, with slabs at directional changes and splits Indiana DOT construction procedures.
• Place markers at each visible termination and at regular intervals near road crossings, driveway edges, and property limits so the line can be found without lengthy probing.

Step-by-step installation for common marker types

Follow these ordered installation checklists. Stop and confirm locating verification at the indicated points. Numeric or dimensional requirements cite authoritative specifications when applicable.

Concrete slab marker installation

1. Verify the line position with a locator and confirm the centerline, offsets, and elevation before any excavation.
2. Excavate the placement area to allow the slab to sit level with the surrounding surface, accounting for slab thickness. For a DOT-style slab example, use a 2 foot square by 4 inch thick slab, with arrows die impressed or saw cut a minimum depth of 3/8 inch for direction marking Indiana DOT construction procedures.
3. Set the slab on a compacted bedding layer, level it, and finish grouting or backfilling per site standard so the top is flush with the finished grade.
4. Before final backfill, verify the marker location and orientation against the locator and record photos and measurements.

Marker post installation

1. Verify the locate and mark the exact post location.
2. Excavate a hole deep enough for the post to resist expected loads. Backfill and compact around the post per manufacturer guidance.
3. Attach the marker plate so the message faces the most likely viewer direction. Photograph and log the installation details.

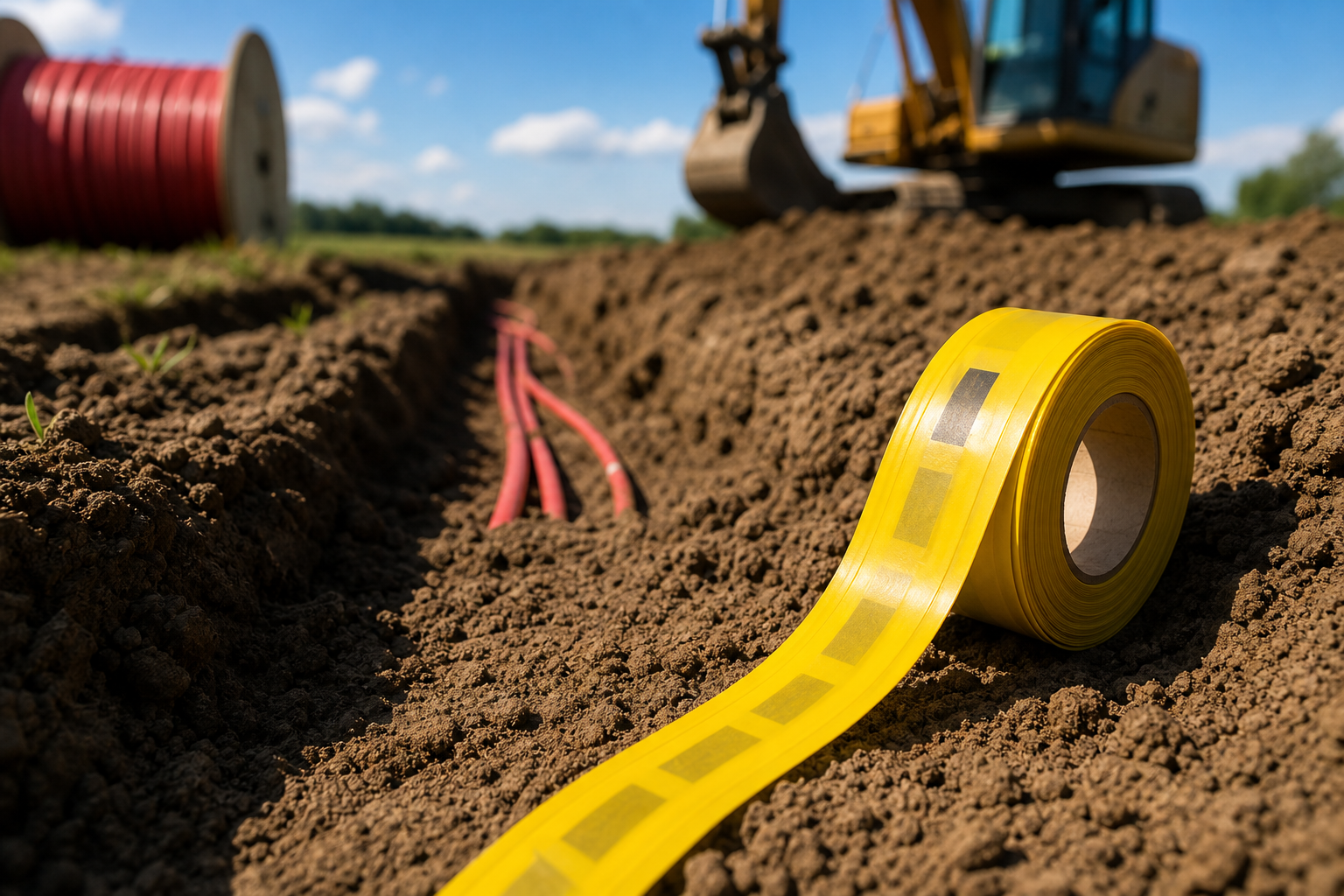

Near-surface plate and detectable tape with tracer wire

1. Verify locate. If the conduit is nonmetallic, lay detectable tracer wire alongside the conduit or attach a tracer that will remain electrically continuous.
2. Place detectable tape within the backfill at the recommended offset above the conduit, typically within the first 12 inches above the line unless local rules specify otherwise.
3. Confirm continuity of tracer wire and test with appropriate locating equipment prior to final surface restoration.

Always perform a final locate sweep with the chosen detecting equipment before completing backfill. If any locate test fails, stop work and resolve the issue with the utility owner.

Material and durability: what to specify for long service life

Prioritize materials engineered for the environment and for detectability where needed. Key features to specify include:

• UV and weather resistance for exposed markers, supported by manufacturer data for fade and embrittlement performance.
• Chemical resistance if markers will be exposed to spills or corrosive soils.
• Freeze-thaw resistance for concrete slabs in climates with repeated freeze cycles.
• Detectable elements or tracer wire for nonmetallic lines so that active or passive locators can reliably find the utility. The FHWA guidance explains how active transmitters interact with plastic and PVC lines and why tracer continuity matters FHWA cable-and-pipe locators guidance.
• Standards and quality cues from suppliers. VisionMarker describes its ANSI certification focus and standards compliance across signage and marker products on its site VisionMarker, and product pages describe formats suitable for buried or near-surface marking Underground Pipe Markers: Spot Lines Fast in.

Documenting, inspecting, and handing over locates

Good documentation reduces future risk and limits repeat locates. Use this post-install checklist and inspection plan.

• Photograph each marker in place with a reference scale, and capture photos of adjacent features and any stamped or die-impressed directional arrows.
• Record GPS coordinates, offsets to fixed site features, and the locate equipment used. Add notes about soil conditions and any anomalies observed during installation.
• Create an as-built entry that lists marker type, manufacturer, part number, spacing, and installation date. Include contact information for the installing contractor and the supplier.
• Schedule periodic visual inspections and re-locate tests. Use an inspection checklist to capture conductor continuity, marker readability, and physical damage. Industry checklists can be adapted for buried cable inspection tasks Underground cable inspection checklist.
• When requesting a custom quote, provide line type, length of run, soil type, expected surface traffic, number of direction changes, and desired marker material so the supplier can propose the right product and quantities.

Common objections, trade-offs, and how to decide

Here are common concerns and practical trade-offs to weigh when selecting underground cable markers.

• Cost versus durability. Concrete slabs cost more to install but offer long service life for permanent runs. Near-surface plates are cheaper but may require replacement sooner in high-traffic areas.
• Detection compatibility. If locating reliability is a priority for plastic or fiber lines, choose tracer wire or detectable tape. Passive near-surface markers alone will not make a nonmetallic line detectable.
• Aesthetics and access. Marker posts and slabs may be visually intrusive in landscaped sites. Consider placement near property edges or out of pedestrian paths while maintaining visibility for future locates.
• Local rules and owner preferences. Always confirm municipal or DOT spacing and placement requirements before choosing a permanent marker type. When in doubt, consult the utility owner or a standards specialist.

FAQ

How far apart should underground cable markers be placed for straight runs?

Spacing depends on owner or DOT specifications. As an example, Indiana DOT requires markers at a maximum of 400 foot intervals on straight runs for concrete cable markers, with markers at every change in direction and at splits Indiana DOT construction procedures. Confirm your local authority having jurisdiction before setting spacing.

Will near-surface markers work with electronic locators on fiber or plastic conduit?

Not by themselves. Nonmetallic lines usually need a conductive tracer wire or an induced signal using an active transmitter so locators can detect the line. FHWA guidance explains the limitations and the role of active EM tracing for plastic and PVC utilities FHWA cable-and-pipe locators guidance.

What depth or embedding is required for concrete slab cable markers?

Design and embedment depend on local standards. A representative DOT specification calls for concrete slabs 2 foot square by 4 inch thick with die impressed direction arrows and specifies placement at directional changes and breaks in the run Indiana DOT construction procedures. Use the applicable local DOT or owner spec for your site.

What information should I include when requesting a custom quote for buried cable markers?

Provide line type, total run length, number of direction changes, soil type, expected surface traffic, desired service life, and quantities or spacing requirements. Also include delivery address and any required specifications so the supplier can generate an accurate quote.

How often should buried cable markers and tracer wires be inspected?

Inspection frequency depends on site conditions and owner requirements. Use an initial post-install inspection and then schedule periodic visual and locate tests. Adapting a standard inspection checklist helps you capture continuity, readability, and physical condition on a repeatable cadence Underground cable inspection checklist.
