How to choose and install ASME A13.1 pipe markers

Which standards apply and why pipe markers matter

Pipe identification reduces response time during emergencies, lowers the chance of maintenance errors, and helps installers and contractors find the right lines quickly. In North America, ASME A13.1 provides the primary framework for color bands, naming conventions, and the use of flow direction indicators. Other referenced documents and industry guidance can supplement ASME A13.1 for specific services or facilities; vendor catalogs and product families often call out the standards they align with so you can choose markers that match your plant’s compliance goals.

Choose materials and construction for your environment

Select marker substrates and adhesives based on exposure: indoor dry air lines have different durability needs than outdoor steam, chemical process, or UV-exposed lines. Common substrate types include flexible vinyl/film wrap-arounds for low- to moderate-duty indoor use, polyester or laminated films for higher abrasion and chemical resistance, and rigid plastic or metal plates for high-temperature or mechanically demanding locations. Adhesive classes range from general-purpose pressure-sensitive adhesives to high-bond industrial adhesives formulated for painted, oily, or textured surfaces; mechanical attachments (snap-on clips, bolted plates) avoid adhesive failure on insulated or rough pipes.

Rules of thumb: pick heavy-duty films or rigid markers when lines are outdoors, exposed to chemicals, or subjected to frequent handling; use standard film wrap-arounds for protected indoor piping where frequent replacement is acceptable and surface conditions are clean. When durability is critical, request material data sheets and compatibility information from a vendor before ordering samples.

Compare actual product listings to judge construction options and available attachment methods — for example, review manufacturer product pages for specific pipe markers and their listed substrates so you can match materials to expected exposures in your facility. Ask vendors for test data and for recommended substrates for your service (chemical contact, steam, outdoor UV, etc.).

Select sizes, wording, colour bands, and attachment type

Follow an ASME A13.1-style approach when deciding content and appearance: use the correct color band to indicate the general class of fluid, add a concise service name (for example, “Steam” or “Potable Water”), and include flow direction arrows where orientation impacts isolation or shutdown procedures.

Sizing and legibility rules of thumb:

• Marker height and text size scale with pipe diameter and viewing distance; larger-diameter mains and overhead runs require taller markers and larger, higher-contrast lettering to remain legible at a distance.
• Provide flow arrows on runs longer than a single sightline or where valves and isolation points are oriented relative to flow direction.
• Place markers so they are visible from primary access routes and from both directions where practical; typical practice is to install markers at regular intervals along a run and at points where lines cross walkways, enter rooms, or pass isolation valves.

Attachment choices by need:

• Wrap-around labels: best for continuous coverage and smaller-diameter lines; ensure pipe surface is clean and compatible with the film adhesive.
• Snap-on or clip-on markers: suitable where insulation is removed, or where adhesive could fail; verify clip sizing for pipe OD and insulation thickness.
• Rigid plates or bolted tags: use where temperatures, abrasion, or chemical exposure would degrade adhesive-backed products.

Maintain a master marking legend for your facility that maps each service name, color band, and abbreviation to a single authoritative label. This improves consistency across procurement cycles and prevents mismatched service names or shorthand that can confuse contractors and responders.

Install and maintain pipe markers: preparation, attachment, and inspection

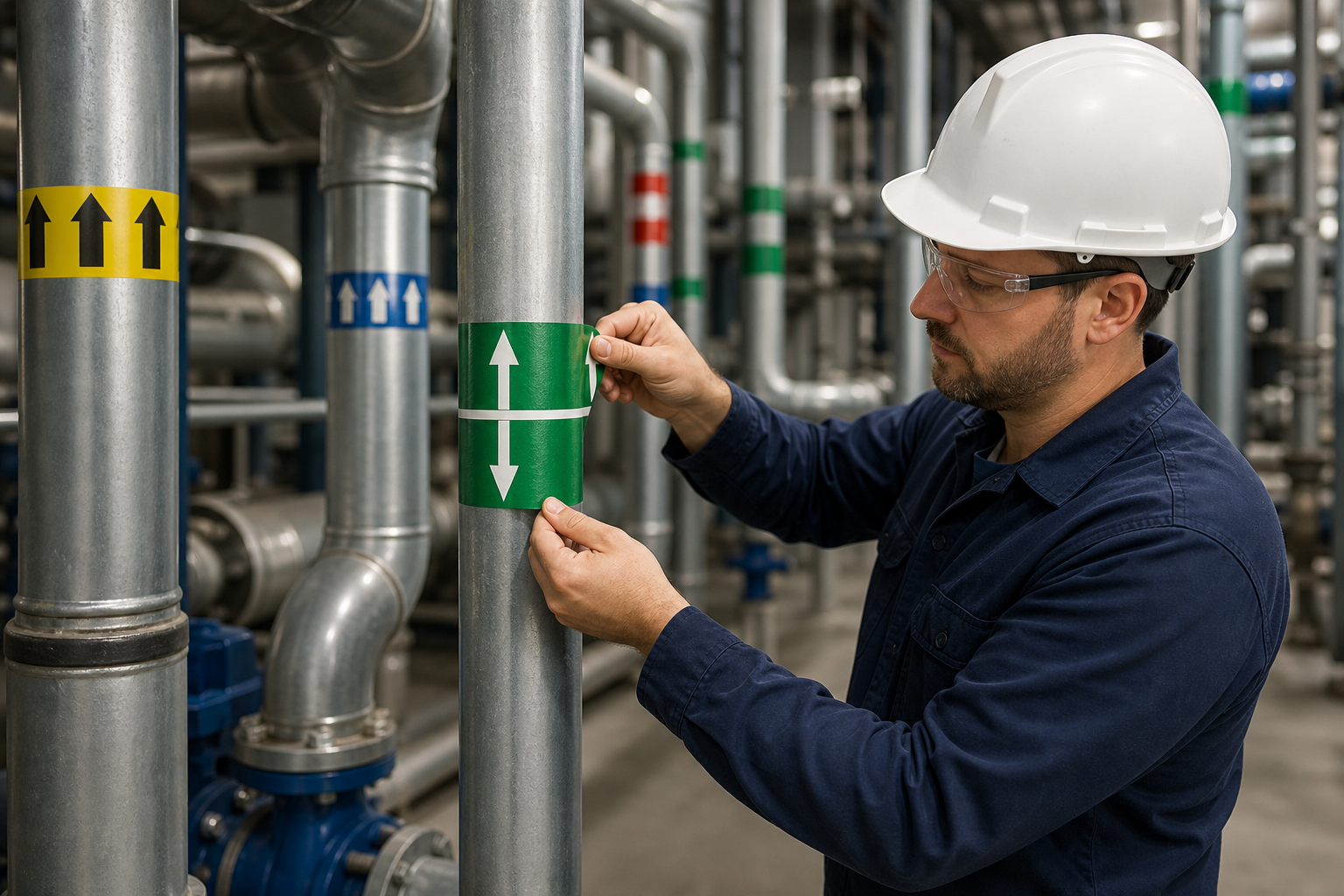

Surface preparation is critical for adhesive-backed markers. Clean the pipe of oils, dirt, and loose paint, then dry thoroughly before applying. For adhesive wrap-arounds, cleaning with isopropyl alcohol and allowing the surface to dry will reduce early adhesive lift; apply pressure during installation to promote contact and avoid trapped moisture. When using mechanical attachments, check clip engagement around any insulation and confirm that fasteners are corrosion-resistant where appropriate.

Installers often perform pipe preparation and basic fittings work before marking. Trade resources provide step-by-step guidance for common preparatory tasks such as cutting and deburring pipes or soldering copper connections—procedures that support a clean, flat surface for marking and reduce future maintenance problems. Useful procedural references include This Old House guides on working with PVC, cutting and tubing, and cutting and soldering copper pipe, which installers commonly consult for these tasks.

Inspection and replacement guidance: replace markers that show fading, color loss, adhesive lift, missing flow arrows, or any damage that could confuse responders or technicians. Rather than a fixed calendar, set inspection triggers based on environment—after chemical spills, heavy UV exposure, physical impacts, or repeated thermal cycling—and include marker checks in routine safety audits. Keep records of installed marker locations, inspection outcomes, and replacement actions so decisions are traceable during safety reviews and audits.

How to request quotes, samples, and what information vendors need

Many suppliers operate on a quote-based pricing model for custom orders and volume purchases. To get accurate pricing and meaningful sample requests, provide these details up front so vendors can size materials, adhesives, and attachment methods correctly:

1. Counts by pipe diameter and approximate quantities per diameter/service.
2. Pipe material (carbon steel, stainless steel, copper, PVC) and surface condition (painted, insulated, bare metal).
3. Desired marker type (wrap-around adhesive, snap-on, rigid plate) and target standards alignment (for example, ASME A13.1 or applicable supplemental standards).
4. Exact text for each service, desired languages, unit or zone numbers, and whether flow arrows are required.
5. Environmental exposures (outdoor, chemical contact, steam, high UV) and any temperature extremes.
6. Request samples, printed proofs, and material/spec data sheets that describe UV, moisture, and chemical resistance when durability is a priority.

When you receive samples, conduct simple acceptance tests on representative pipe surfaces: verify adhesive bond on painted and bare metal, confirm legibility at intended viewing distances, and observe behavior under expected temperature swings. If UV resistance is a concern, expose samples to sunlight or a UV lamp for a short trial period and inspect for color change. Document pass/fail criteria so replacements meet your facility’s expectations.

Providing clear, consolidated information up front reduces back-and-forth and helps vendors return accurate price estimates, recommended substrates, and sample pieces suitable for field testing.

Frequently asked questions

What exact details should I include when asking a vendor for a pipe marker quote?

Provide pipe diameter counts, pipe material, surface condition (painted or insulated), the desired marker type, exact service text for each run, language requirements, flow-arrow needs, and environmental exposures. This information lets a vendor propose the correct substrate, adhesive, and attachment method and offer accurate pricing and sample availability.

How do I choose between wrap-around labels, snap-on markers, and rigid markers for my piping?

Match the marker type to mechanical, thermal, and service-access needs: wrap-arounds for small diameters and clean indoor lines; snap-on markers where insulation removal or frequent access occurs; rigid plates for high-temperature, abrasive, or permanently insulated lines. Consider legibility at distance—rigid and larger markers provide better readability for overhead or distant runs.

Which environmental factors should trigger more frequent marker inspections or replacement?

Inspect after chemical exposure, high UV exposure, mechanical impacts, or severe thermal cycling. Replace markers that show fading, color loss, peeling edges, or missing flow arrows—any condition that could confuse users or emergency responders.

Do ASME A13.1 colour bands and flow arrows apply to specialty gas or medical lines?

ASME A13.1-style color and flow conventions are widely used, but specialty services—such as medical-gas systems or certain compressed gases—may be subject to additional or alternative standards. Check the specific regulations or professional guidance for those systems and request marker families that explicitly state alignment with ASME A13.1 and any applicable supplemental standards.

Next steps and where to get standards-compliant pipe markers

Prepare a procurement package with a count of pipe diameters and services, note pipe materials and exposures, choose preferred marker types, and request samples and material spec sheets so you can validate adhesives and substrate performance in your site conditions. For practical installer steps on cutting, fitting, and preparing pipes prior to marking, consult trade references such as This Old House for guidance on PVC, copper, and steel pipe preparation (see the linked how-to guides above).

Quick checklist to include with a quote request: pipe diameters and quantities; pipe material and surface condition; marker type; exact service text and language; flow-arrow requirements; exposure conditions; and request for samples and spec sheets.
