Choosing ASME A13.1 pipe marker colors is more than picking a paint swatch. Use this numbered checklist to avoid specification mistakes that cause noncompliance, illegible markers, or confusing mixed-content identifications. Each question names a concrete risk, why it matters, and the precise evidence you should collect before ordering markers.
Quick primer: what ASME A13.1 says about pipe marker colors
ASME A13.1 exists to make pipe contents and relative hazards immediately identifiable through a standardized color framework, consistent legends, and directional markings. The standard assigns colors according to content class and hazard level and pairs color with readable legends and arrows. For a practical explanation and chart of the ASME A13.1 color code, consult a concise reference such as the ASME A13.1 color code chart and guide. For marker format and sizing rules that link label size to pipe diameter, see an A13.1 sizing summary and guide.
Helpful references
- Pipe Marker Color Code Chart: ASME A13.1 Colors Explained for a clear mapping of content classes to colors.
- The Complete Guide to Pipe Marking: ASME/ANSI A13.1 Explained for sizing and format details tied to pipe diameter.
Question 1: Does the chosen color correctly reflect the pipe content and relative hazard?
Why this matters
Colors are not decorative. ASME A13.1 assigns colors to indicate content class and relative hazard, so choosing an incorrect color undermines the whole system and increases the chance of misinterpretation during maintenance, emergencies, or inspections. Compliance reviewers expect color choices to follow the standard’s intent, not facility-branding preferences.
What to check and ask
- Confirm the content class of each line, for example potable water, steam, hazardous chemical, compressed gas, or process fluid, before assigning a color.
- Ask for a vendor swatch mapped to the ASME A13.1 color chart so reviewers can verify the visual match under facility lighting.
- Require a legend that names the fluid or gas and, when needed, an abbreviated hazard qualifier such as “flammable” or “corrosive” rather than relying on color alone.
Document the mapping from content to color in your project files so auditors and the authority having jurisdiction can see the logic behind each selection.

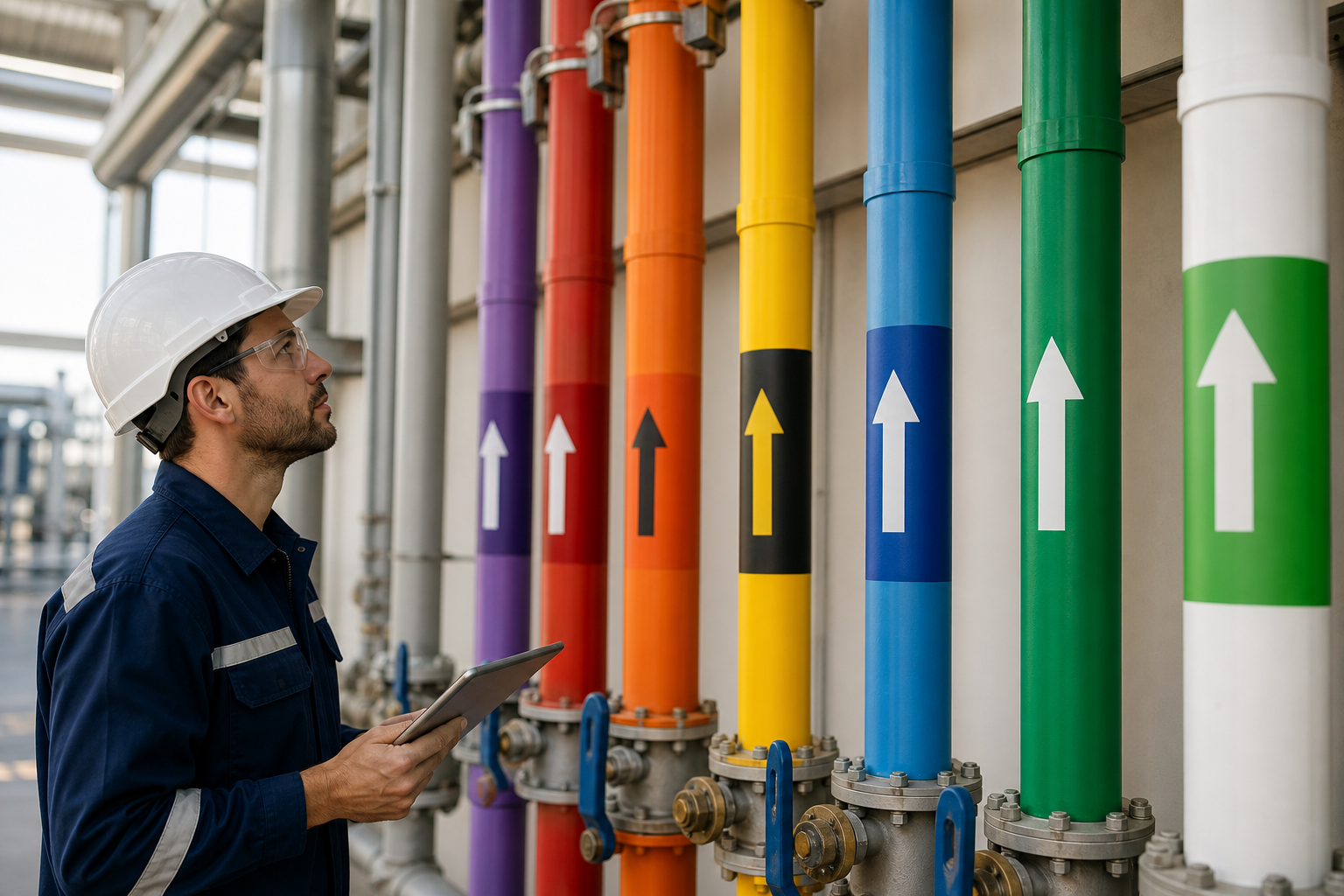

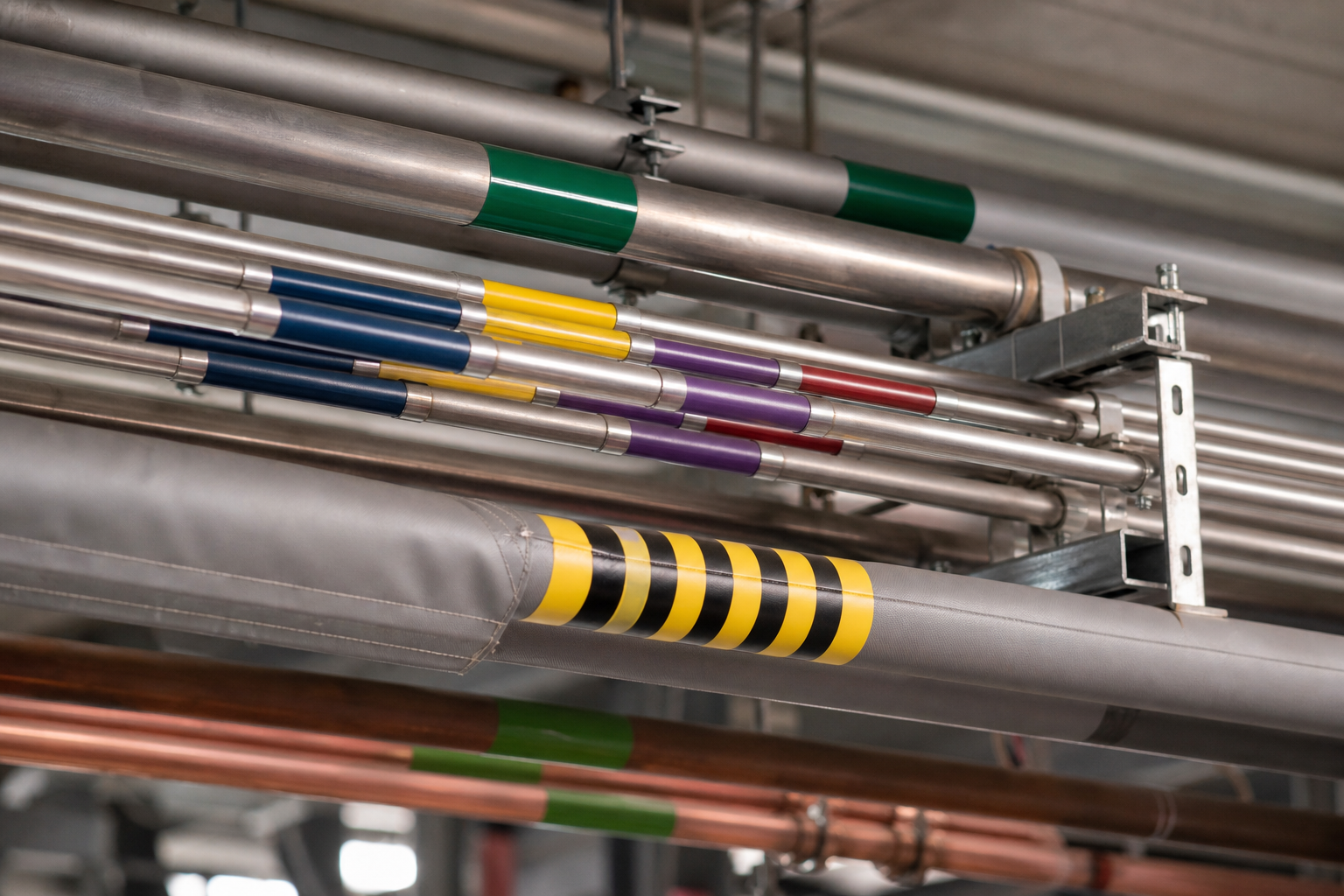

Question 2: How will you mark mixed-content pipes, multi-line bundles, or heat-traced systems?
Why this matters
Many facilities use bundles, double-contained piping, or heat trace where more than one medium or system attribute applies. A single flat color can hide that complexity and lead to incorrect assumptions during maintenance or emergency response.
What to check and ask
- Decide whether to use split panels, dual-color bands, or a dominant-color with supplemental legends to reflect multiple contents.
- For insulated or heat-traced pipes, confirm whether markers will be applied to insulation jacketing, to exposed pipe at access points, or to adjacent tags, and specify adhesive and backing type accordingly.
- When a pipe carries intermittent or variable contents, require a date-stamped installation record and a permanent legend such as “Contains: see ledger” plus a local reference to the piping schematic.
For system-specific examples and strategies, see guidance such as VisionMarker’s ammonia pipe marker recommendations to understand how hazardous-system markers are handled in practice. Ammonia Pipe Marker Tips shows how added legends and split colors reduce ambiguity for critical systems.
Question 3: Will the marker size and placement meet ASME A13.1 legibility rules for your pipe diameters?
Why this matters
Marker readability depends on proportion. ASME A13.1 ties marker length, legend height, and repetition to pipe diameter and typical viewing distance. Under-sized or infrequently placed markers are functionally unreadable even when color and legend are correct.
What to check and ask
- Provide a pipe schedule that lists outer diameter ranges so vendors can propose marker lengths and font sizes that meet A13.1 guidance for your diameters.
- Specify mounting locations: at valves, flanges, changes in direction, and at regular intervals along straight runs according to your internal policy or the standard’s repetition guidance.
- Require arrowed markers for flow direction where applicable and confirm the orientation for each run so arrows and legends remain legible to technicians.
Confirm sizing and format choices against an ASME A13.1 sizing reference so your purchase order contains explicit marker lengths and font heights tied to pipe size rather than vague descriptors.
Question 4: Are the marker material and finish specified for UV, moisture, and chemical resistance?
Why this matters
Color contrast and legend legibility fail first in the field, not on paper. Exposure to sunlight, moisture, solvents, or process splashes will fade pigments and erode face films, removing the contrast needed to read the marker. Low-cost materials that are not engineered for industrial exposure create hidden lifecycle costs from replacements and rework.
What to check and ask
- Require UV-stable inks and a laminated face or weatherproof coating specified for outdoor exposure or aggressive indoor environments.
- Specify adhesive class suitable for your temperature range and substrate such as smooth metal, painted surfaces, or insulation jacketing, and ask for adhesive pull-test data where adhesion is critical.
- Ask vendors to document chemical-resistance ratings or to supply sample markers to be soaked or wiped with representative chemicals before you approve full production.
VisionMarker highlights durable, ANSI-certified materials and weatherproof construction as core product features. Ask vendors to include material data sheets and durability claims with quotes so you can compare like for like.

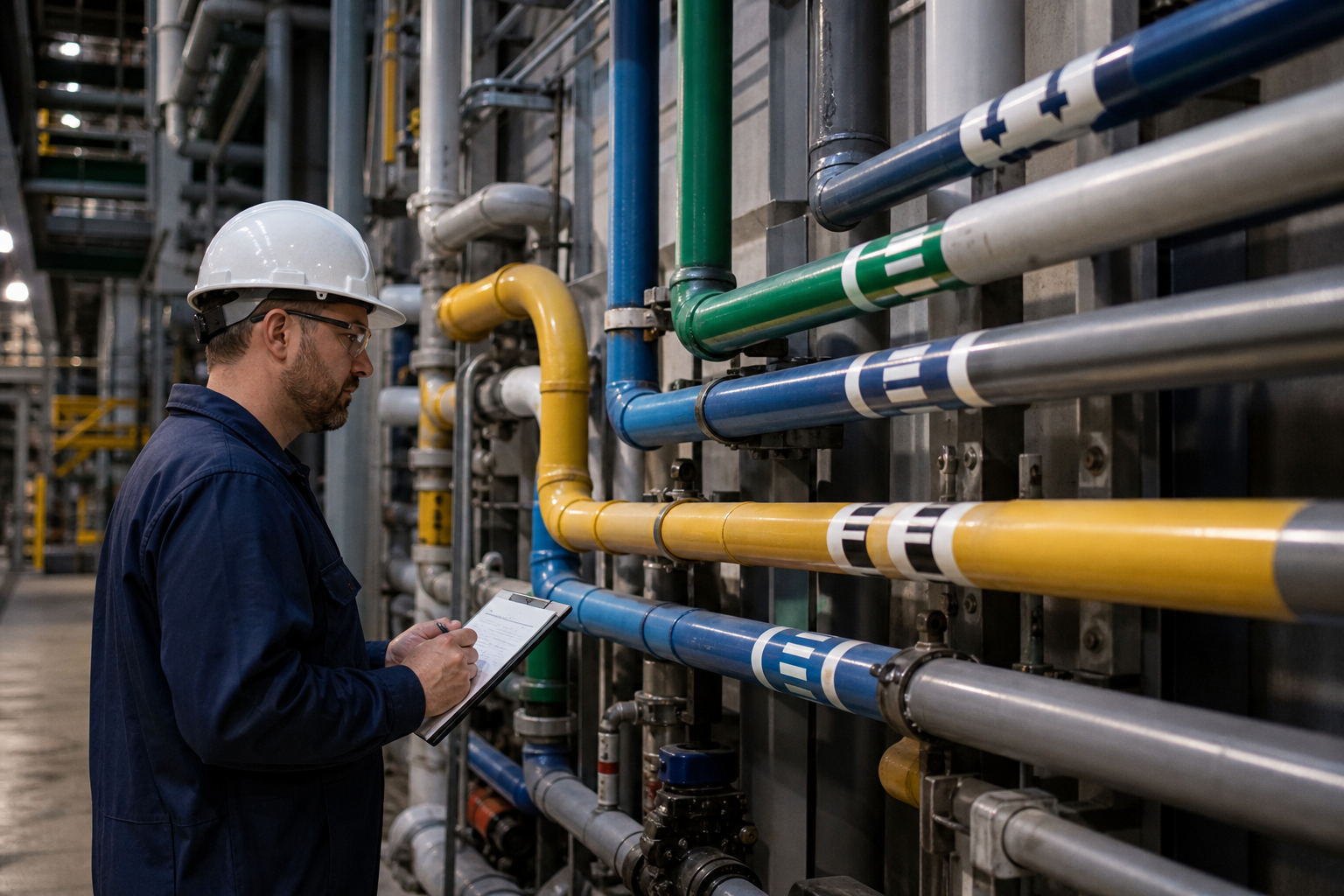

Question 5: Have you added text legends and design choices for color-blind accessibility and cross-shift clarity?
Why this matters
Relying on color alone creates risk for people with color-vision deficiencies or under poor lighting. ASME anticipates combining color with readable legends and directional arrows. Accessibility and shift-to-shift clarity require redundant cues so any technician can identify the line quickly.
What to check and ask
- Specify a high-contrast legend on every marker, using plain text abbreviations or full names as your program requires.
- Include flow direction arrows and consider pictograms for critical hazards so the marker conveys the message even if color discrimination is difficult.
- Request vendor mockups and test them under typical lighting and with a simple color-vision simulator or by review from staff with known color-vision differences.
Question 6: How do ASME A13.1 colors interact with NFPA, ANSI, and Canadian standards or your AHJ?
Why this matters
ASME A13.1 is widely used across North America but does not operate in a vacuum. Fire codes, medical gas standards, compressed gas associations, and Canadian standards may add legend requirements, photometric rules, or different naming conventions. Your authority having jurisdiction may require supplemental signage or a particular legend format for emergency systems.
What to check and ask
- List the standards that apply to your site and confirm whether any system-specific rules override or supplement ASME A13.1 color guidance.
- Ask the AHJ or your safety reviewer to sign off on any deviation from standard color mapping, particularly for fire protection, medical gases, or hazardous chemical systems.
- Require vendors to note compatibility with other relevant standards in their quotes and to attach reference documentation where available.
Include standard references in your procurement packet and request vendor confirmation that their markers are produced to meet the applicable standards for your jurisdiction.
Question 7: Does your procurement plan cover custom legends, sample approvals, lead times, and installation QA?
Why this matters
Specification ambiguity is the most common procurement risk. Vague orders lead to wrong colors, wrong materials, and unapproved legends. A clear procurement plan prevents rework and keeps project schedules intact without assuming online catalog defaults will match your site needs.
What to check and ask
- Include explicit ASME color callouts, an attached vendor swatch or sample, desired material and laminate, exact marker lengths by pipe diameter, and legend text in the purchase order.
- Require a small-batch sample approval step before full production and a written on-site acceptance criterion for installed markers.
- Ask vendors for documentation on their quoting process, custom-legend capabilities, and their recommended QA steps for installation.
Because some suppliers work on a quote-based model and will produce custom legends and materials to order, build the sample and approval process into the contract. For practical markup tips and hazardous-system examples, review system-focused guidance such as VisionMarker’s ammonia pipe marker page.
Frequently asked questions
What exactly does ASME A13.1 require for pipe marker colors and when can I use a custom color?
ASME A13.1 requires that colors correspond to content classes and relative hazard, and that markers include readable legends and directional indicators. Custom colors may be used only when documented and approved by your AHJ or when supplemental legends provide unambiguous identification. Always map custom colors to the ASME framework in project documentation and keep an approved swatch on file.
Can I deviate from ASME A13.1 colors for my facility standard without breaking compliance?
Deviating from ASME A13.1 without AHJ approval risks noncompliance. If you adopt a facility-specific palette, document the mapping to ASME classes and obtain sign-off from the AHJ and your safety leadership. Use redundant legends and pictograms to reduce risk when deviating from the standard.
How often should pipe markers be inspected and replaced because of fading or damage?
Inspect markers during routine preventive maintenance and after significant exposure events such as chemical releases or extended high-UV weather. Replace markers that show loss of contrast, peeling, or unreadable legends. Specify inspection intervals in your maintenance program and require vendors to provide material durability data to help set realistic replacement cycles.
What information should I include on a sample marker for vendor approval?
Include the ASME color callout, exact legend text, marker length, font height, adhesive and backing type, and a note on environmental exposure. Ask the vendor to deliver a physical sample on the specified material so you can test adhesion, legibility, and chemical resistance on-site.
How do I handle small-diameter pipes or pipes behind insulation where standard marker sizes do not fit?
Use localized tags, wrap-around markers sized for small diameters, or adjacent rigid tags mounted on supports. Document the exception in your piping identification standard and ensure legends remain legible from normal access points. Specify mounting details in the procurement packet to prevent incorrect standard markers from being supplied.
Contact VisionMarker to request samples, ask about custom legends, or arrange a quote and site review. A clear sample approval step saves time and prevents costly rework.
Key takeaway: treat ASME A13.1 pipe marker colors as a systems decision. Verify content-class mapping, plan for mixed-content scenarios, lock down sizing and material details, account for accessibility, confirm interactions with other standards and your AHJ, and bake sample approvals into procurement. Doing these seven checks up front saves time, ensures safer communication, and reduces costly rework during installation.
